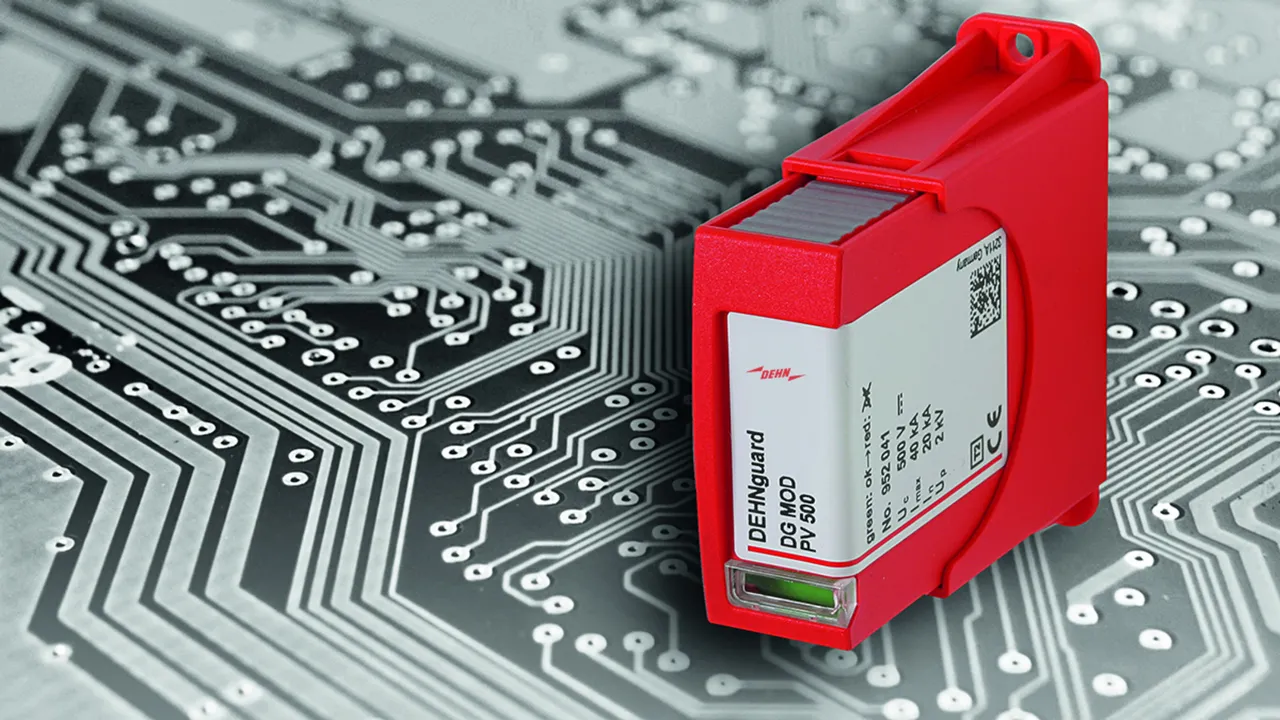

DEHNguard PCB

  • Base for DEHNguard protection modules to be mounted on and integrated in PCBs
  • Optimal integration of a type 2 arrester in devices
  • Easy and flexible use for all circuit configurations
  • Proven DEHNguard modules ensure high performance
  • Coded base and protection module guard against installing an incorrect module
  • Version with and without remote signalling contact for the monitoring device
  • Versions for maximum requirements on clearances and creepage distances
  • Versions for other DEHNguard protection modules available on request

DEHNguard PCB PV SCI ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Productos

N.º art. 952653 DG PCB PV SCI 300

GTIN 4013364150713, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.89 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

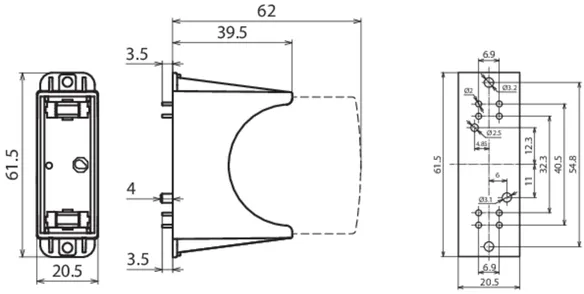

DEHNguard PCB PV SCI 300 single-pole base
Single-pole base for DEHNguard protection modules
for integration on PCBs
Coded base part and protection module
Mounting via screw and soldered connection on PCBs
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 500 V

Brand: DEHN
Type: DG PCB PV SCI 300
Part No.: 952653
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952653 a favoritos.

Ir a favoritos

El artículo 952653 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952651 DG PCB PV SCI 500

GTIN 4013364146310, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.89 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV SCI 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500
Part No.: 952651
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952651 a favoritos.

Ir a favoritos

El artículo 952651 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952654 DG PCB PV SCI 600

GTIN 4013364149878, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV SCI 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600
Part No.: 952654
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952654 a favoritos.

Ir a favoritos

El artículo 952654 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB PV SCI ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Productos

N.º art. 952753 DG PCB PV SCI 300 FM

GTIN 4013364150720, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

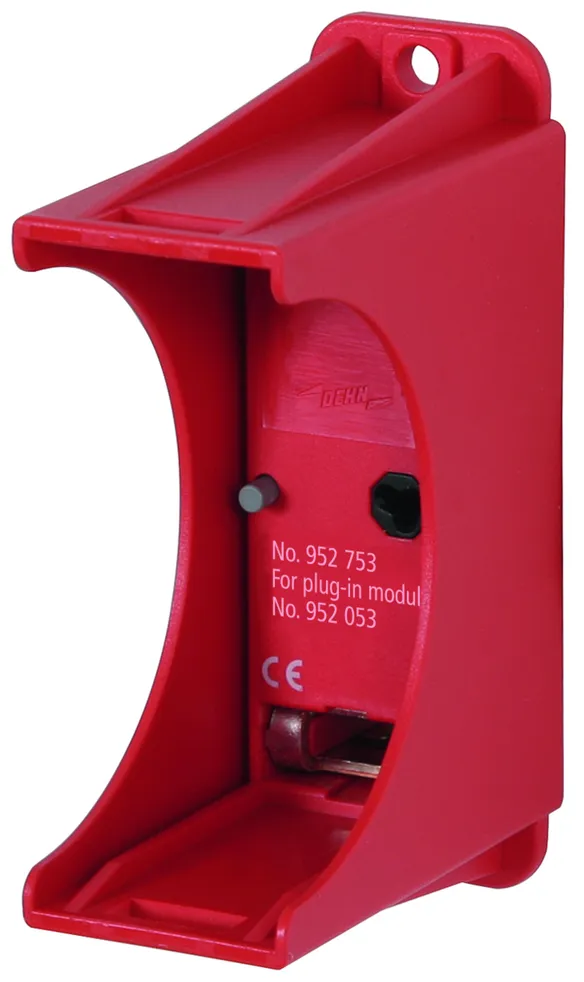

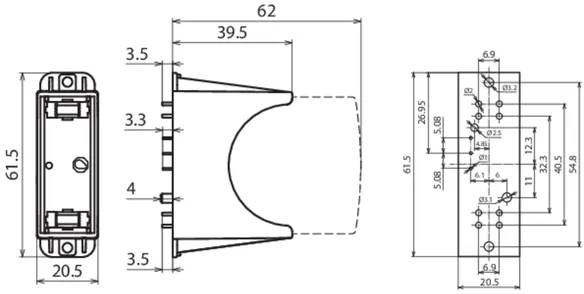

DEHNguard PCB PV SCI 300 FM single-pole base
Single-pole base for DEHNguard protection modules
is mounted and integrated on PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 300 FM
Part No.: 952753
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 300 (Part No. 952 053)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952753 a favoritos.

Ir a favoritos

El artículo 952753 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952751 DG PCB PV SCI 500 FM

GTIN 4013364146327, N.º de arancel aduanero (EU): 85366930, Peso bruto: 20.49 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV SCI 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 500 FM
Part No.: 952751
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952751 a favoritos.

Ir a favoritos

El artículo 952751 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952754 DG PCB PV SCI 600 FM

GTIN 4013364149885, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV SCI 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV SCI 600 FM
Part No.: 952754
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 600 (Part No. 952 054)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952754 a favoritos.

Ir a favoritos

El artículo 952754 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB PV ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

3 Productos

N.º art. 952643 DG PCB PV 300

GTIN 4013364150737, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.89 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV 300 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300
Part No.: 952643
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952643 a favoritos.

Ir a favoritos

El artículo 952643 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952641 DG PCB PV 500

GTIN 4013364146334, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.89 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV 500 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500
Part No.: 952641
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952641 a favoritos.

Ir a favoritos

El artículo 952641 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952644 DG PCB PV 600

GTIN 4013364149892, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV 600 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600
Part No.: 952644
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952644 a favoritos.

Ir a favoritos

El artículo 952644 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB PV ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

3 Productos

N.º art. 952743 DG PCB PV 300 FM

GTIN 4013364150744, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV 300 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module): 300 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 300 FM
Part No.: 952743
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 300 (Part No. 952 043)
Max. continuous operating voltage (d.c.) (module) 300 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952743 a favoritos.

Ir a favoritos

El artículo 952743 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952741 DG PCB PV 500 FM

GTIN 4013364146341, N.º de arancel aduanero (EU): 85366930, Peso bruto: 20.49 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 500 FM
Part No.: 952741
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952741 a favoritos.

Ir a favoritos

El artículo 952741 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952744 DG PCB PV 600 FM

GTIN 4013364149908, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV 600 FM
Part No.: 952744
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 600 (Part No. 952 044)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952744 a favoritos.

Ir a favoritos

El artículo 952744 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB ...

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices.

2 Productos

N.º art. 952610 DG PCB 275

GTIN 4013364149816, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB 275 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (d.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275
Part No.: 952610
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952610 a favoritos.

Ir a favoritos

El artículo 952610 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952614 DG PCB 385

GTIN 4013364149847, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB 385 single-pole base
Single-pole base for DEHNguard protection modules
is integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (d.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385
Part No.: 952614
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952614 a favoritos.

Ir a favoritos

El artículo 952614 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB ... FM

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Productos

N.º art. 952710 DG PCB 275 FM

GTIN 4013364149830, N.º de arancel aduanero (EU): 85366930, Peso bruto: 20.59 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 275 FM
Part No.: 952710
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952710 a favoritos.

Ir a favoritos

El artículo 952710 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952714 DG PCB 385 FM

GTIN 4013364149854, N.º de arancel aduanero (EU): 85366930, Peso bruto: 20.59 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB 385 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 FM
Part No.: 952714
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD 385 (Part No. 952 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952714 a favoritos.

Ir a favoritos

El artículo 952714 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB NPE (FM)

Single-pole base for DEHNguard modules to be mounted on the PCBs of devices, with remote signalling contact for the monitoring system (floating changeover contact).

2 Productos

N.º art. 952650 DG PCB NPE

GTIN 4013364149823, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB NPE single-pole base
Single-pole base for DEHNguard protection modules
to be integrated on PCBs
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (d.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE
Part No.: 952650
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)

Se ha añadido el artículo 952650 a favoritos.

Ir a favoritos

El artículo 952650 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952750 DG PCB NPE FM

GTIN 4013364149861, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB NPE FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module): 255 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB NPE FM
Part No.: 952750
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD NPE (Part No. 952 050)
Max. continuous operating voltage (a.c.) (module) 255 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952750 a favoritos.

Ir a favoritos

El artículo 952750 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB PV I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

3 Productos

N.º art. 952941 DG PCB PV I 500 FM

GTIN 4013364228177, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV I 500 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 500 FM
Part No.: 952941
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV 500 (Part No. 952 041)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952941 a favoritos.

Ir a favoritos

El artículo 952941 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952948 DG PCB PV I 600 FM

GTIN 4013364323919, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PV I 600 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module): 600 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 600 FM
Part No.: 952948
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD H PV 600 (Part No. 952 048)
Max. continuous operating voltage (d.c.) (module) 600 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952948 a favoritos.

Ir a favoritos

El artículo 952948 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952949 DG PCB PV I 750 FM

GTIN 4013364323926, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

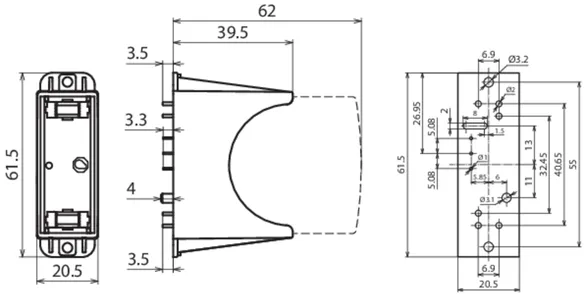

DEHNguard PCB PV I 750 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure
against installing an incorrect module
Associated protection module:
DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module): 750 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PV I 750 FM
Part No.: 952949
or equivalent.



Datos técnicos

Associated protection module DG MOD H PV 750 (Part No. 952 049)
Max. continuous operating voltage (d.c.) (module) 750 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952949 a favoritos.

Ir a favoritos

El artículo 952949 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB PVSCI I ...FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Producto

N.º art. 952951 DG PCB PVSCI I 500FM

GTIN 4013364228184, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB PVSCI I 500FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module): 500 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB PVSCI I 500FM
Part No.: 952951
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD PV SCI 500 (Part No. 952 051)
Max. continuous operating voltage (d.c.) (module) 500 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952951 a favoritos.

Ir a favoritos

El artículo 952951 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNguard PCB I ... FM

Single-pole base with increased clearance and creepage distance between the power contacts and the remote signalling contact. For installation on the PCBs of devices to accommodate DEHNguard modules, with remote signalling contact for the monitoring system (floating changeover contact).

1 Producto

N.º art. 952910 DG PCB I 275 FM

GTIN 4013364266865, N.º de arancel aduanero (EU): 85366930, Peso bruto: 19.79 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

DEHNguard PCB I 275 FM single-pole base
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
With remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module): 275 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB I 275 FM
Part No.: 952910
or equivalent.

Certificados



Datos técnicos

Associated protection module DG MOD 275 (Part No. 952 010)
Max. continuous operating voltage (a.c.) (module) 275 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952910 a favoritos.

Ir a favoritos

El artículo 952910 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DG PCB ... UL

2 Productos

N.º art. 952615 DG PCB 385 UL FM

GTIN 4013364535794, N.º de arancel aduanero (EU): 85366930, Peso bruto: 20.49 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

Single-pole base DEHNguard DG PCB 385 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 385 (Part No. 908 014)
Max. continuous AC operating voltage (module): 385 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 385 UL FM
Part No.: 952615
or equivalent.



Datos técnicos

Associated protection module DG PLU 385 (Part No. 908 014)
Max. continuous operating voltage (a.c.) (module) 385 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952615 a favoritos.

Ir a favoritos

El artículo 952615 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 952616 DG PCB 510 UL FM

GTIN 4013364535800, N.º de arancel aduanero (EU): 85366930, Peso bruto: 20.49 g, Empaquetado: 72.00 pc(s)

Figuras

Más información

Single-pole base DEHNguard DG PCB 510 UL FM
Single-pole base for DEHNguard protection modules
mounted on and integrated in PCBs
with remote signalling contact
Coded base part and protection module ensure against installing an incorrect module
Associated protection module:
DG PLU 510 (Part No. 908 013)
Max. continuous AC operating voltage (module): 510 V
To be screwed and soldered on PCBs

Brand: DEHN
Type: DG PCB 510 UL FM
Part No.: 952616
or equivalent.



Datos técnicos

Associated protection module DG PLU 510 (Part No. 908 013)
Max. continuous operating voltage (a.c.) (module) 510 V
For mounting on directly soldered into PCB
Degree of protection IP 20 (protection module plugged in)
Type of remote signalling contact changeover contact

Se ha añadido el artículo 952616 a favoritos.

Ir a favoritos

El artículo 952616 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
back to top
