Marker for Terminal Lugs

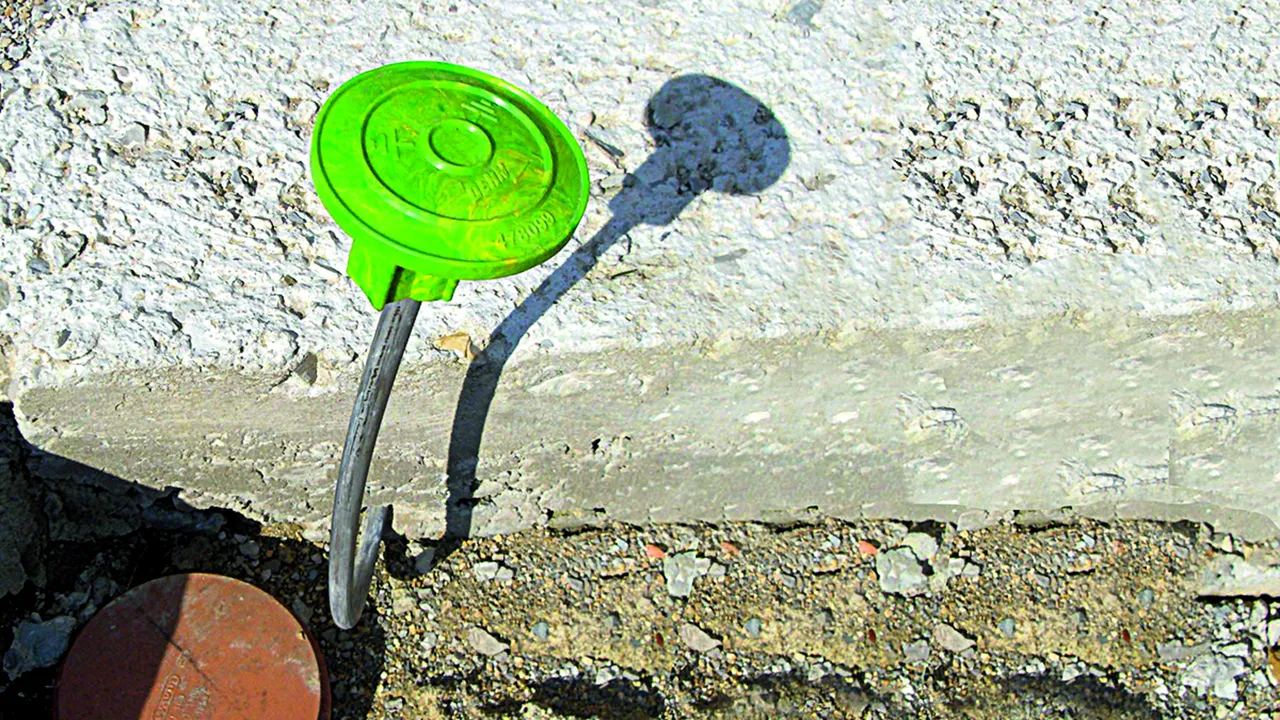

For attaching onto round wires or strips as striking marker (as required according to DIN 18014) during the construction phase.

1 Producto

N.º art. 478099 SK RD10 FL30X3.5 GRGE PVC

GTIN 4013364120334, N.º de arancel aduanero (EU): 85389099, Peso bruto: 51.70 g, Empaquetado: 20.00 pc(s)

Figuras

Más información

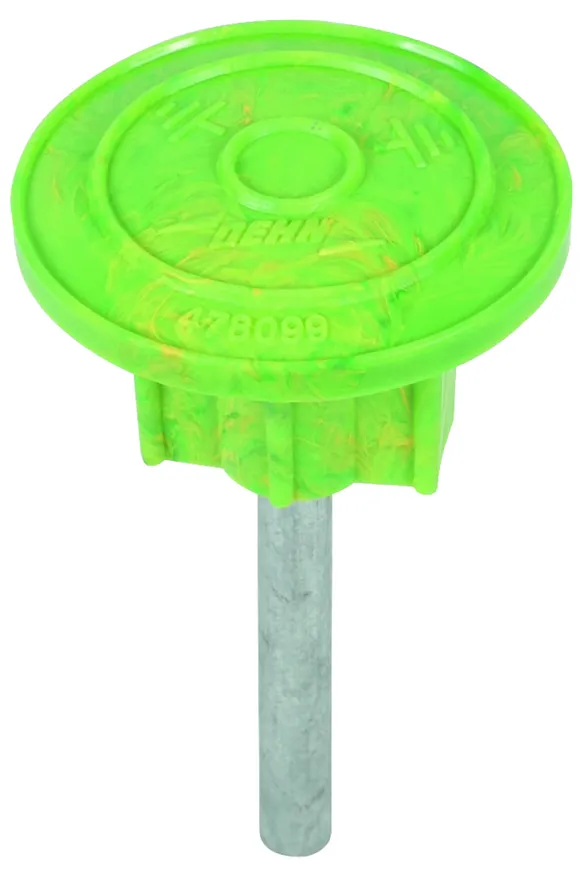

Marker for connection lugs, PVC, 70 mm, green / yellow
Marker for connection lugs
To be attached on round wires or strips
As striking marker (required acc. to DIN 18014)
during the construction phase.
Material: PVC

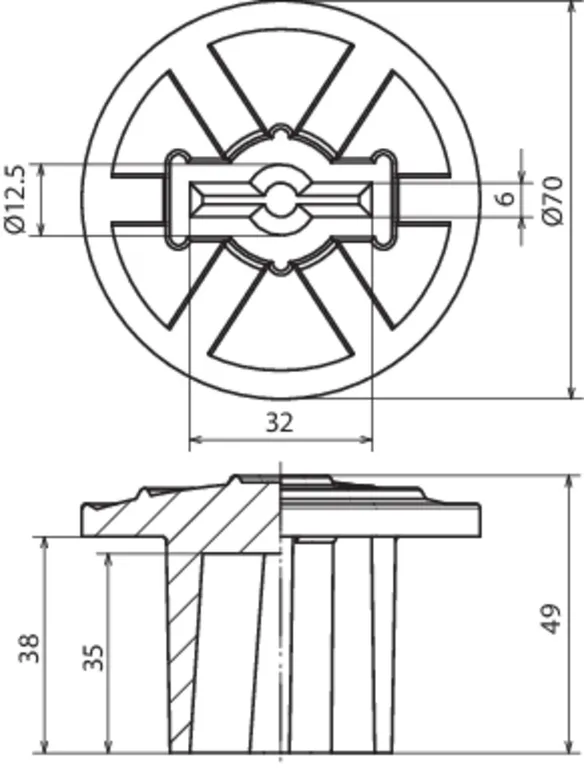

Diameter Ø: 70 mm
Attach on Fl: 30 x 3.5 mm
Attach on Rd: 10 mm
Colour: green ● / yellow ●

Brand: DEHN
Type: SK RD10 FL30X3.5 GRGE PVC
Part No.: 478099
or equivalent.



Datos técnicos

Material PVC
Diameter Ø 70 mm
Attach on Fl 30 x 3.5 mm
Attach on Rd 10 mm
Colour green ● / yellow ●
