Air-termination Rod for Ridge and Hip Tiles

For protecting solar thermal modules, photovoltaic generators, or other roof-mounted structures on gable roofs.
Installation with stepwise adjustable clamping bracket adjustable to the diameter of the ridge tiles.

1 Producto

N.º art. 123109 FS 10 1000 FG AL V2A

GTIN 4013364107366, N.º de arancel aduanero (EU): 85389099, Peso bruto: 339.50 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

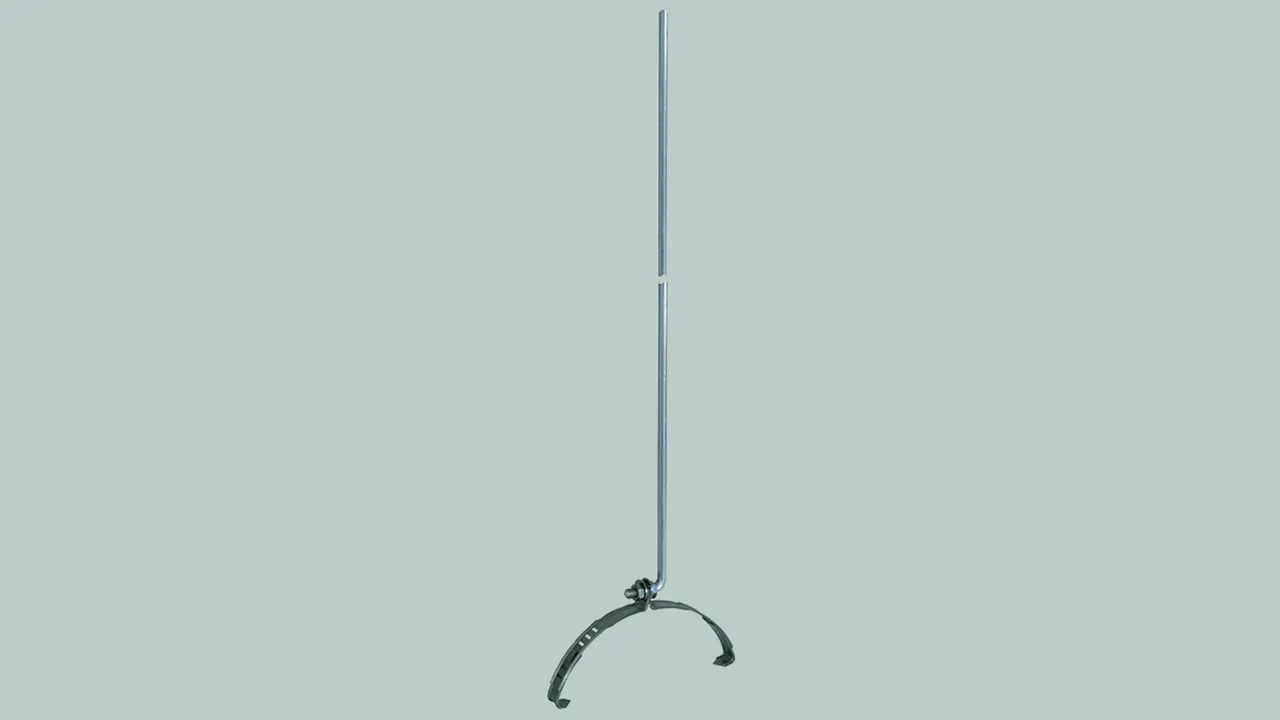

Air-termination rod for ridge and hip tiles, height: 1000 mm
Air-termination rod for ridge and hip tiles for protecting e.g. solar thermal modules, photovoltaic generators or other superstructures on gable roofs.
Installation of the air-termination rod is based
on a clamping technique.
The gradually adjustable elements allow for preliminary setting according to the respective diameter of the hip tile.
Material of air-termination rod: Al
Length: 1000 mm
Clamping range: 120-240 mm
Standard: EN 62561-2

Brand: DEHN
Type: FS 10 1000 FG AL V2A
Part No.: 123109
or equivalent.

Certificados



Datos técnicos

Material of air-termination rod Al
Length 1000 mm
Clamping range 120-240 mm
Standard EN 62561-2
