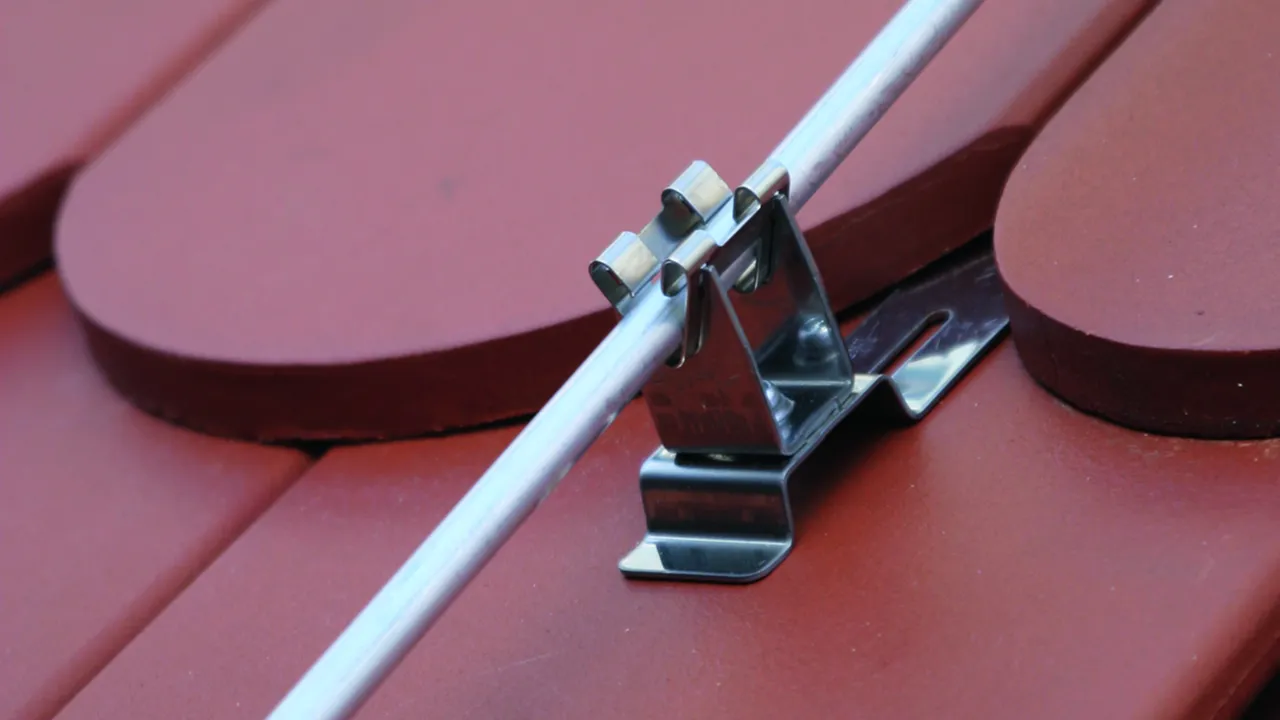

Roof Conductor Holders with Embossed Brace for Roof Surfaces

For fixing air-termination and down conductors.

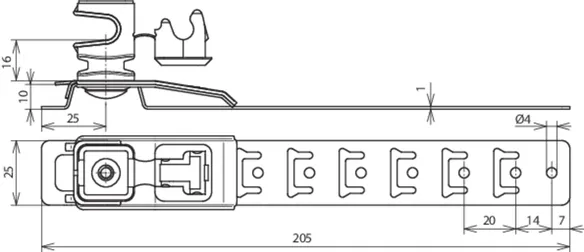

UNIsnap height 16 mm

With prepunched points for bending it and hooking it into roof tiles or battens, with conductor holder DEHNsnap, loose conductor routing.

6 Productos

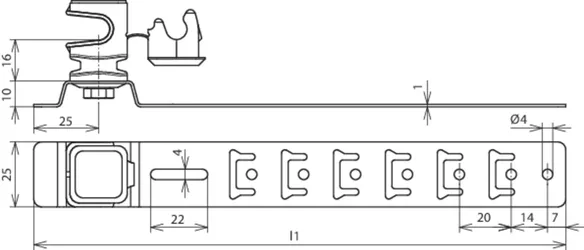

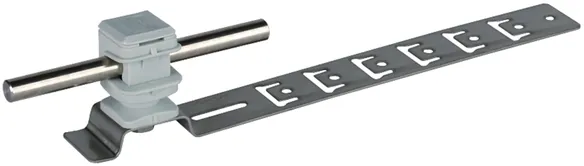

N.º art. 204149 DLH US 8 H16 L205 GR V2A

GTIN 4013364042285, N.º de arancel aduanero (EU): 85389099, Peso bruto: 55.42 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 GR V2A
Part No.: 204149
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204149 a favoritos.

Ir a favoritos

El artículo 204149 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

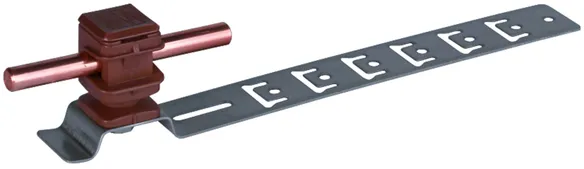

N.º art. 204921 DLH US 8 H16 L205 BR V2A

GTIN 4013364030589, N.º de arancel aduanero (EU): 85389099, Peso bruto: 53.02 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 BR V2A
Part No.: 204921
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204921 a favoritos.

Ir a favoritos

El artículo 204921 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

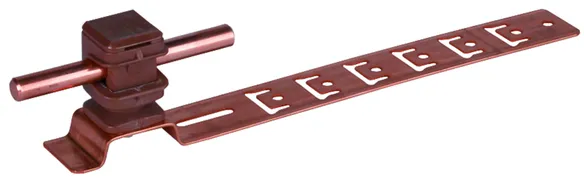

N.º art. 204147 DLH US 8 H16 L205 BR GALCU

GTIN 4013364042513, N.º de arancel aduanero (EU): 85389099, Peso bruto: 54.02 g, Empaquetado: 50.00 pc(s)

Predecesor

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L205 BR GALCU
Part No.: 204147
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204147 a favoritos.

Ir a favoritos

El artículo 204147 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

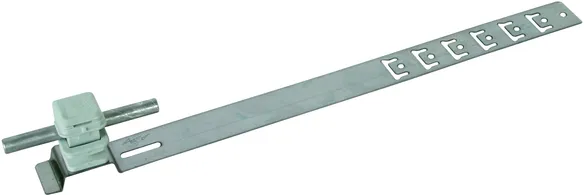

N.º art. 204159 DLH US 8 H16 L335 GR V2A

GTIN 4013364042537, N.º de arancel aduanero (EU): 85389099, Peso bruto: 82.96 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L335 GR V2A
Part No.: 204159
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204159 a favoritos.

Ir a favoritos

El artículo 204159 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

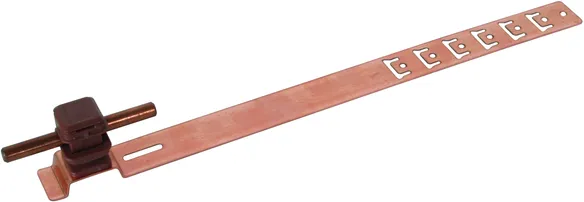

N.º art. 204157 DLH US 8 H16 L335 BR GALCU

GTIN 4013364042520, N.º de arancel aduanero (EU): 85389099, Peso bruto: 88.16 g, Empaquetado: 50.00 pc(s)

Predecesor

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 16 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L335 BR GALCU
Part No.: 204157
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204157 a favoritos.

Ir a favoritos

El artículo 204157 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

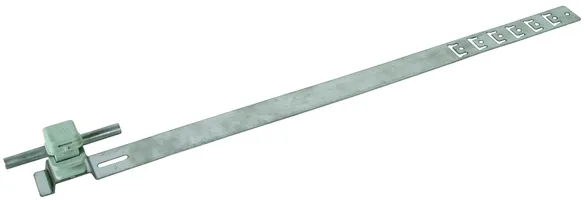

N.º art. 204169 DLH US 8 H16 L475 GR V2A

GTIN 4013364042551, N.º de arancel aduanero (EU): 85389099, Peso bruto: 106.58 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 16 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H16 L475 GR V2A
Part No.: 204169
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204169 a favoritos.

Ir a favoritos

El artículo 204169 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

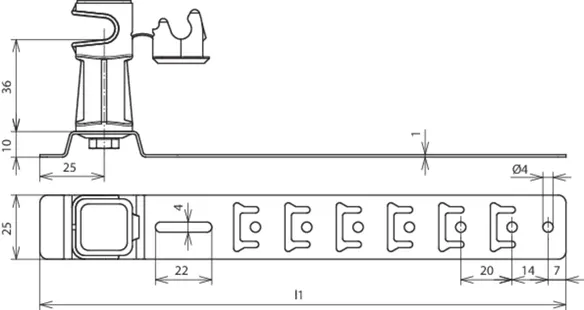

UNIsnap height 36 mm

With prepunched points, for bending it and hooking it into roof tiles or battens, with conductor holder DEHNsnap, loose conductor routing.

8 Productos

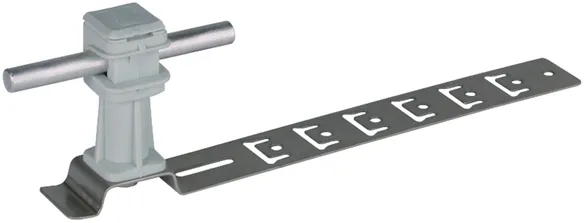

N.º art. 204179 DLH US 8 H36 L205 GR V2A

GTIN 4013364042575, N.º de arancel aduanero (EU): 85389099, Peso bruto: 63.02 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 GR V2A
Part No.: 204179
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204179 a favoritos.

Ir a favoritos

El artículo 204179 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

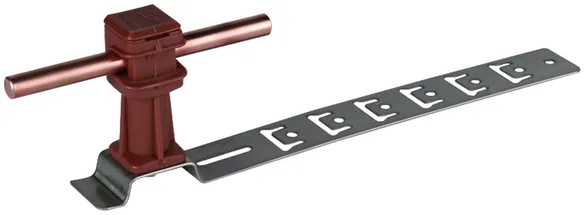

N.º art. 204924 DLH US 8 H36 L205 BR V2A

GTIN 4013364030619, N.º de arancel aduanero (EU): 85389099, Peso bruto: 67.22 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 BR V2A
Part No.: 204924
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204924 a favoritos.

Ir a favoritos

El artículo 204924 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

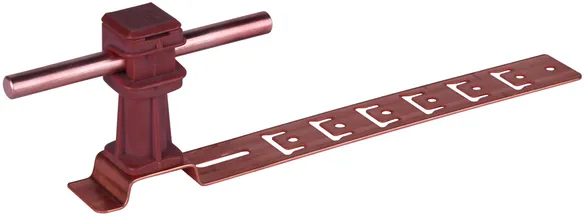

N.º art. 204177 DLH US 8 H36 L205 BR GALCU

GTIN 4013364042568, N.º de arancel aduanero (EU): 85389099, Peso bruto: 73.02 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm
Roof conductor holder, with embossed brace for roofss
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L205 BR GALCU
Part No.: 204177
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204177 a favoritos.

Ir a favoritos

El artículo 204177 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

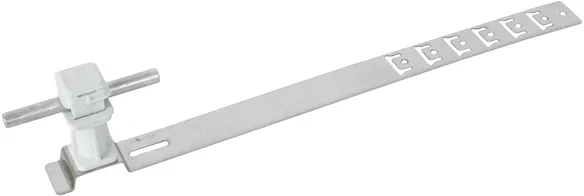

N.º art. 204189 DLH US 8 H36 L335 GR V2A

GTIN 4013364042599, N.º de arancel aduanero (EU): 85389099, Peso bruto: 88.16 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 GR V2A
Part No.: 204189
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204189 a favoritos.

Ir a favoritos

El artículo 204189 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

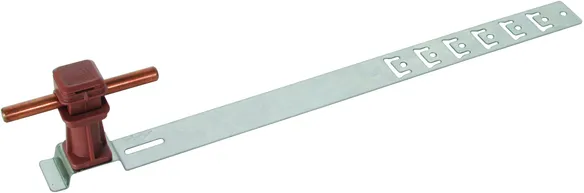

N.º art. 204925 DLH US 8 H36 L335 BR V2A

GTIN 4013364030626, N.º de arancel aduanero (EU): 85389099, Peso bruto: 94.96 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 BR V2A
Part No.: 204925
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204925 a favoritos.

Ir a favoritos

El artículo 204925 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 204187 DLH US 8 H36 L335 BR GALCU

GTIN 4013364042582, N.º de arancel aduanero (EU): 85389099, Peso bruto: 96.36 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L335 BR GALCU
Part No.: 204187
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204187 a favoritos.

Ir a favoritos

El artículo 204187 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 204199 DLH US 8 H36 L475 GR V2A

GTIN 4013364042278, N.º de arancel aduanero (EU): 85389099, Peso bruto: 117.98 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L475 GR V2A
Part No.: 204199
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204199 a favoritos.

Ir a favoritos

El artículo 204199 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 204197 DLH US 8 H36 L475 BR GALCU

GTIN 4013364042605, N.º de arancel aduanero (EU): 85389099, Peso bruto: 118.88 g, Empaquetado: 1.00 pc(s)

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, height: 36 mm, brown, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 475 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH US 8 H36 L475 BR GALCU
Part No.: 204197
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 475 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204197 a favoritos.

Ir a favoritos

El artículo 204197 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

UNIsnap with clamping part

With prepunched points for bending it and hooking it into roof tiles or battens,with additional clamping part e.g. for slated roofs, with conductor holder DEHNsnap, loose conductor routing.

1 Producto

N.º art. 204089 LH US 8 H16 L205 KT GR V2A

GTIN 4013364109568, N.º de arancel aduanero (EU): 85389099, Peso bruto: 70.32 g, Empaquetado: 1.00 pc(s)

Predecesor

Figuras

Más información

Gable roofs - UNIsnap roof conductor holder, with clamping part, grey, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIsnap with prepunched points for bending it and hooking it into roof battens, with additional clamping part
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 16 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: LH US 8 H16 L205 KT GR V2A
Part No.: 204089
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204089 a favoritos.

Ir a favoritos

El artículo 204089 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNsnap with Al base brace

Moulds itself to the grooves of the tile, with conductor holder DEHNsnap, loose conductor routing.

2 Productos

N.º art. 204170 DLH DS 8 H36 L205 GR AL

GTIN 4013364072435, N.º de arancel aduanero (EU): 85389099, Peso bruto: 42.82 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - DEHNsnap roof conductor holder with Al brace, grey, Al
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNsnap conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: grey ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L205 GR AL
Part No.: 204170
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204170 a favoritos.

Ir a favoritos

El artículo 204170 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 204171 DLH DS 8 H36 L205 BR AL

GTIN 4013364073708, N.º de arancel aduanero (EU): 85389099, Peso bruto: 41.42 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - DEHNsnap roof conductor holder with Al brace, brown, Al
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNsnap conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 36 mm
Colour of conductor holder: brown ●
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H36 L205 BR AL
Part No.: 204171
or equivalent.

Certificados



Datos técnicos

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 36 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor support Rd 8 mm

Se ha añadido el artículo 204171 a favoritos.

Ir a favoritos

El artículo 204171 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

UNIgrip height 20 mm

With prepunched points for bending it and hooking it on roof tiles or battens, with conductor holder DEHNgrip, loose conductor routing.

6 Productos

N.º art. 206209 DLH UG 8 H20 L205 V2A

GTIN 4013364042759, N.º de arancel aduanero (EU): 85389099, Peso bruto: 61.40 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 V2A
Part No.: 206209
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206209 a favoritos.

Ir a favoritos

El artículo 206209 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206207 DLH UG 8 H20 L205 CU

GTIN 4013364054257, N.º de arancel aduanero (EU): 85389099, Peso bruto: 66.90 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 CU
Part No.: 206207
or equivalent.



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206207 a favoritos.

Ir a favoritos

El artículo 206207 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206219 DLH UG 8 H20 L335 V2A

GTIN 4013364042766, N.º de arancel aduanero (EU): 85389099, Peso bruto: 87.96 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L335 V2A
Part No.: 206219
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206219 a favoritos.

Ir a favoritos

El artículo 206219 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206217 DLH UG 8 H20 L335 CU

GTIN 4013364052208, N.º de arancel aduanero (EU): 85389099, Peso bruto: 97.56 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 335 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L335 CU
Part No.: 206217
or equivalent.



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 335 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206217 a favoritos.

Ir a favoritos

El artículo 206217 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206229 DLH UG 8 H20 L475 V2A

GTIN 4013364042773, N.º de arancel aduanero (EU): 85389099, Peso bruto: 120.48 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L475 V2A
Part No.: 206229
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206229 a favoritos.

Ir a favoritos

El artículo 206229 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206227 DLH UG 8 H20 L475 CU

GTIN 4013364054264, N.º de arancel aduanero (EU): 85389099, Peso bruto: 123.78 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 20 mm, Cu
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: Cu
Length of brace: 475 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L475 CU
Part No.: 206227
or equivalent.



Datos técnicos

Material of roof conductor holder Cu
Length of brace (l1) 475 mm
Height of conductor holder 20 mm
Material of conductor holder Cu
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206227 a favoritos.

Ir a favoritos

El artículo 206227 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

UNIgrip height 32 mm

With prepunched points for bending it and hooking it on roof tiles or battens, with conductor holder DEHNgrip, loose conductor routing.

3 Productos

N.º art. 206309 DLH UG 8 H32 L205 V2A

GTIN 4013364042780, N.º de arancel aduanero (EU): 85389099, Peso bruto: 63.02 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L205 V2A
Part No.: 206309
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206309 a favoritos.

Ir a favoritos

El artículo 206309 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206319 DLH UG 8 H32 L335 V2A

GTIN 4013364042667, N.º de arancel aduanero (EU): 85389099, Peso bruto: 92.16 g, Empaquetado: 50.00 pc(s)

Predecesor

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 335 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L335 V2A
Part No.: 206319
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 335 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206319 a favoritos.

Ir a favoritos

El artículo 206319 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206329 DLH UG 8 H32 L475 V2A

GTIN 4013364042797, N.º de arancel aduanero (EU): 85389099, Peso bruto: 116.58 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder, height: 32 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens
Material of roof conductor holder: StSt
Length of brace: 475 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H32 L475 V2A
Part No.: 206329
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 475 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206329 a favoritos.

Ir a favoritos

El artículo 206329 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

UNIgrip with clamping part, height 20 mm

With prepunched points for bending it and hooking it into roof tiles or battens, with additional clamping part, e.g. for slated roofs, with conductor holder DEHNgrip, loose conductor routing.

1 Producto

N.º art. 206289 DLH UG 8 H20 L205 KT V2A

GTIN 4013364149427, N.º de arancel aduanero (EU): 85389099, Peso bruto: 79.12 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roof - UNIgrip roof conductor holder, with clamping part, height: 20 mm, StSt
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
UNIgrip with prepunched points for bending and hooking into the roof battens with additional clamping part
Material of roof conductor holder: StSt
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH UG 8 H20 L205 KT V2A
Part No.: 206289
or equivalent.



Datos técnicos

Material of roof conductor holder StSt
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206289 a favoritos.

Ir a favoritos

El artículo 206289 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

DEHNgrip with Al brace

Moulds itself to the grooves of the tile, with conductor holder DEHNgrip, loose conductor routing.

2 Productos

N.º art. 206170 DLH DG 8 H20 L205 V2A AL

GTIN 4013364082816, N.º de arancel aduanero (EU): 85389099, Peso bruto: 54.02 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder with Al brace, height: 20 mm
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNgrip conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 20 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L205 V2A AL
Part No.: 206170
or equivalent.



Datos técnicos

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206170 a favoritos.

Ir a favoritos

El artículo 206170 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

N.º art. 206171 DLH DG 8 H32 L205 V2A AL

GTIN 4013364089488, N.º de arancel aduanero (EU): 85389099, Peso bruto: 54.02 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Gable roofs - UNIgrip roof conductor holder with Al brace, height: 20 mm
Roof conductor holder, with embossed brace for roofs
For fixing air-termination and down conductors
With aluminium brace which moulds itself to the grooves of the tile, with DEHNgrip conductor holder
Material of roof conductor holder: Al
Length of brace: 205 mm
Height of conductor holder: 32 mm
Conductor support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H32 L205 V2A AL
Part No.: 206171
or equivalent.



Datos técnicos

Material of roof conductor holder Al
Length of brace (l1) 205 mm
Height of conductor holder 32 mm
Material of conductor holder StSt
Conductor support Rd 8 mm
Standard EN 62561-4

Se ha añadido el artículo 206171 a favoritos.

Ir a favoritos

El artículo 206171 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
back to top
