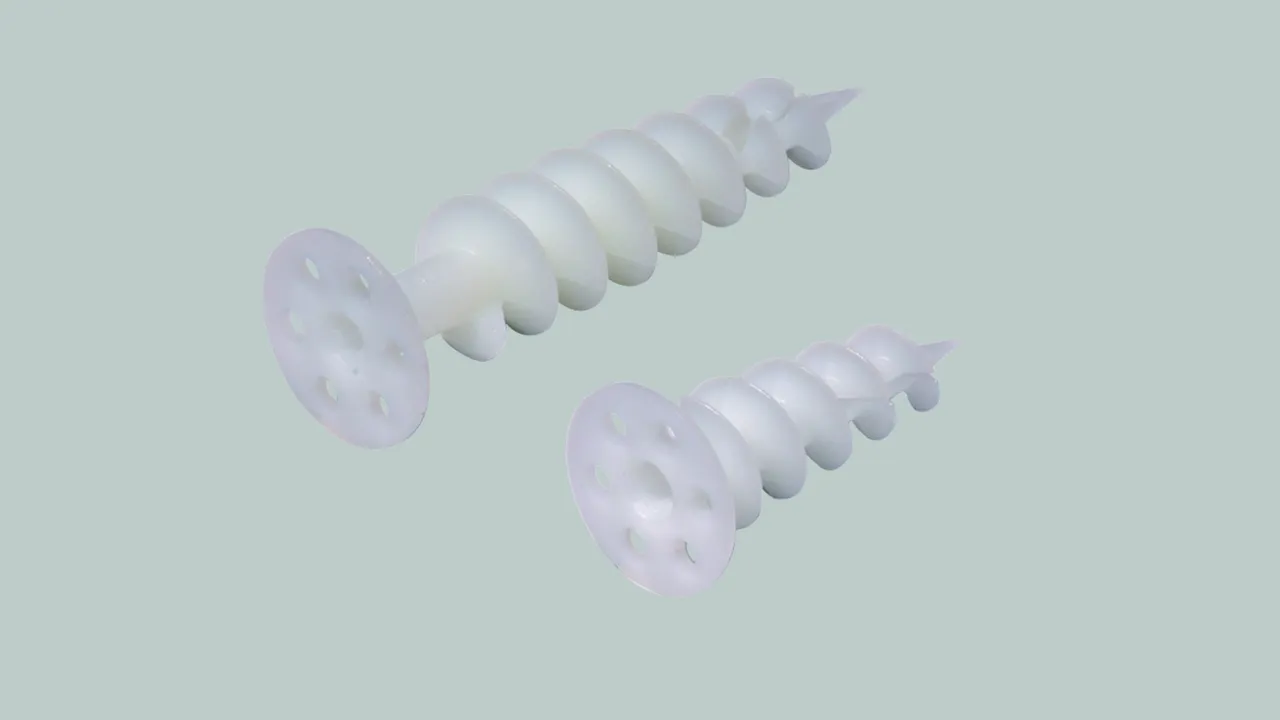

Dowels for Rigid Foam Plates

For fixing conductor holders, flat strip and rod holders to external thermal insulation composite systems.
With star drive (TX40).
Mounting with wood screws Ø4.5 mm.

This dowel is only suitable for fastening conductor holders if no additional traction is applied on the down conductor.

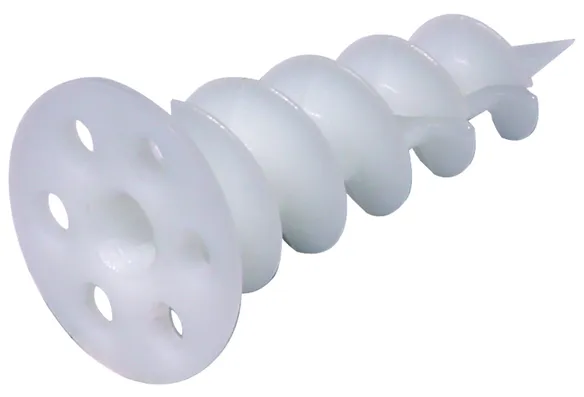

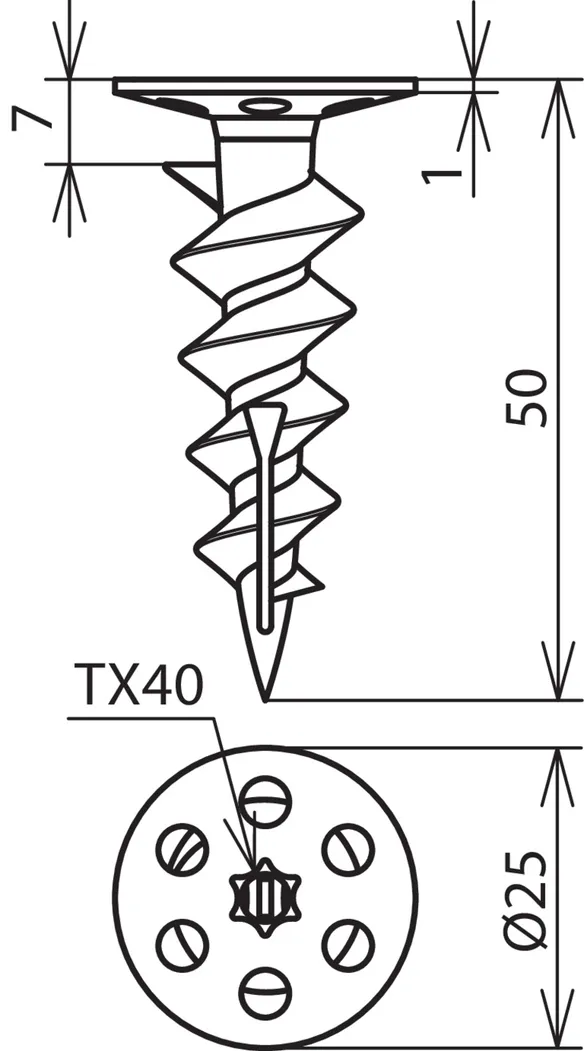

Short design

1 Producto

N.º art. 200600 HSPD HS4.5 L50 PA

GTIN 4013364098220, N.º de arancel aduanero (EU): 39269097, Peso bruto: 5.60 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Dowel for rigid foam plate, short
Dowel for HR foam plates
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 60 mm
Anchoring depth / length: 50 mm
Working load of Styrofoam PS20: 35 N
Working load of rigid foam plates: 60 N

Brand: DEHN
Type: HSPD HS4.5 L50 PA
Part No.: 200600
or equivalent.



Datos técnicos

Material PA
Thickness of insulating material 60 mm
Anchoring depth / length 50 mm

Se ha añadido el artículo 200600 a favoritos.

Ir a favoritos

El artículo 200600 ha sido añadido a la cesta de compra.

Ir a la cesta de compra

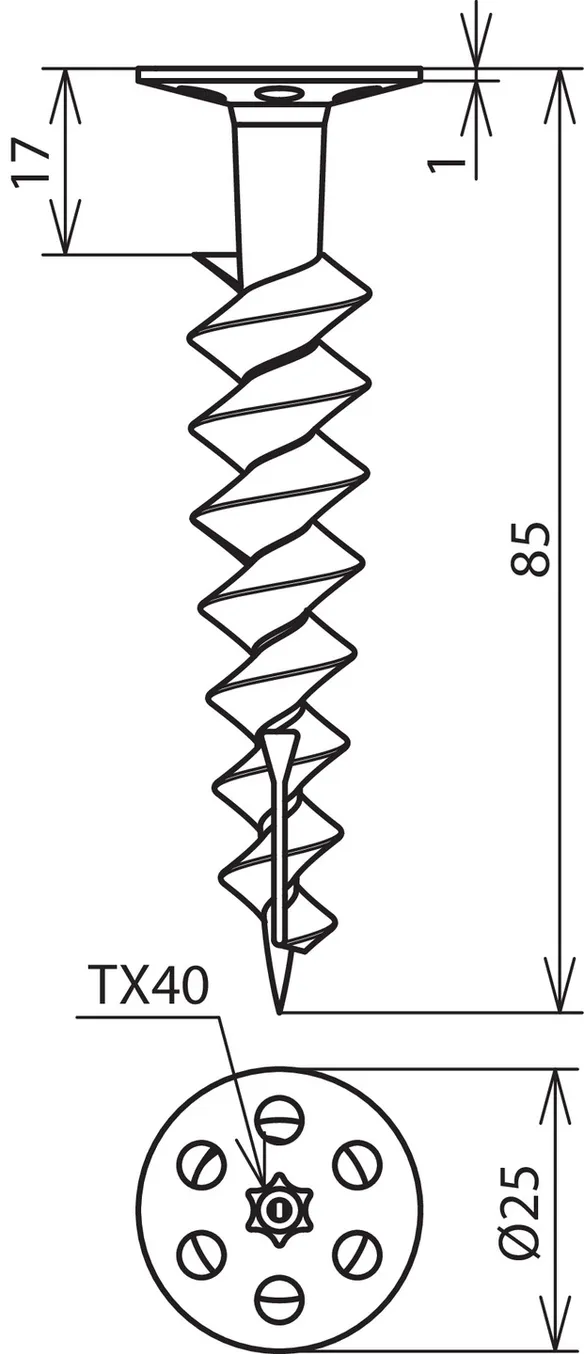

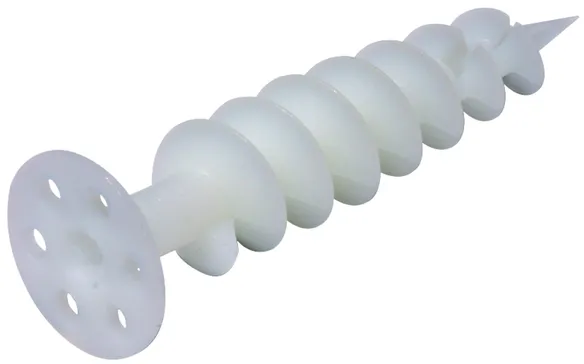

Long design

1 Producto

N.º art. 200601 HSPD HS4.5 L85 PA

GTIN 4013364098237, N.º de arancel aduanero (EU): 39269097, Peso bruto: 8.60 g, Empaquetado: 50.00 pc(s)

Figuras

Más información

Dowels for rigid foam plate, long
Dowel for HR foam plates
For fixing conductor and rod holders in external thermal
insulation composite systems
To be mounted with wood screws Ø4.5 mm
Material: PA
Thickness of insulating material: 100 mm
Anchoring depth / length: 85 mm
Working load of Styrofoam PS20: 60 N
Working load of rigid foam plates: 85 N

Brand: DEHN
Type: HSPD HS4.5 L85 PA
Part No.: 200601
or equivalent.



Datos técnicos

Material PA
Thickness of insulating material 100 mm
Anchoring depth / length 85 mm

Se ha añadido el artículo 200601 a favoritos.

Ir a favoritos

El artículo 200601 ha sido añadido a la cesta de compra.

Ir a la cesta de compra
