SPD Test Device
![](/thumbor/unsafe/fit-in/480x/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311023/HDVORSCHAU/910511a2_16-9.jpg)
![](/thumbor/unsafe/fit-in/1280x720/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311023/HDVORSCHAU/910511a2_16-9.jpg)

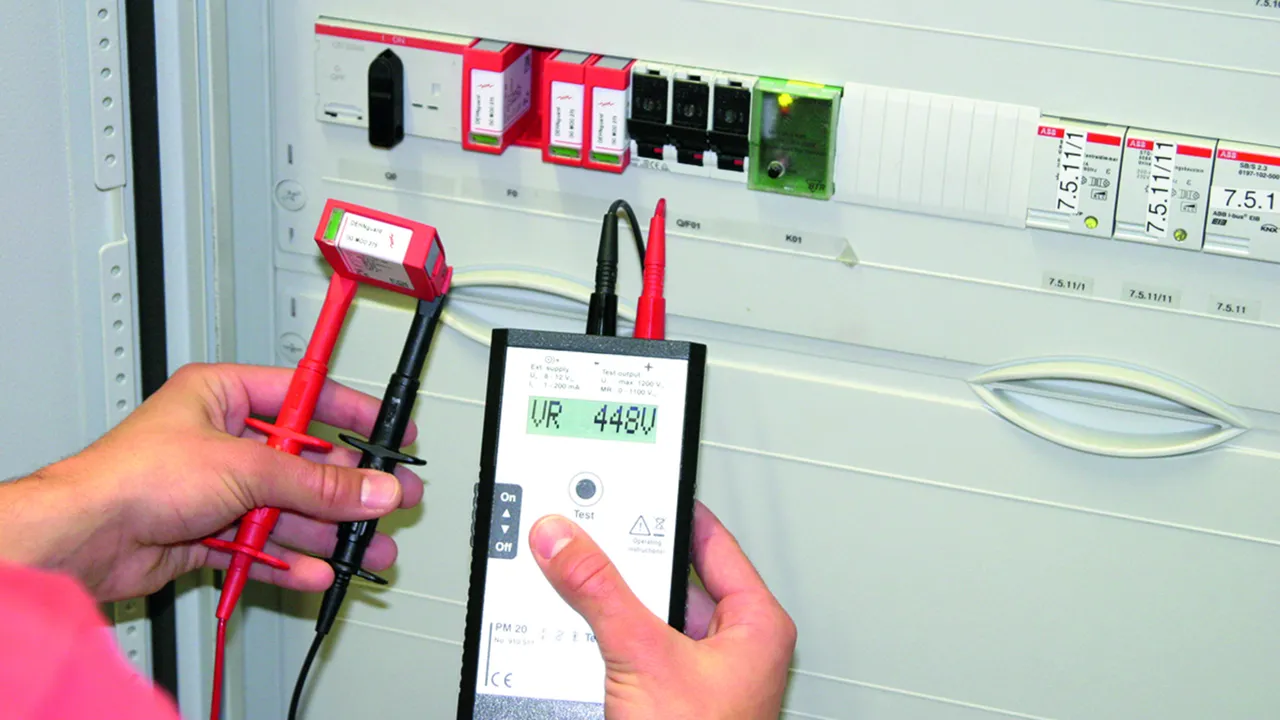

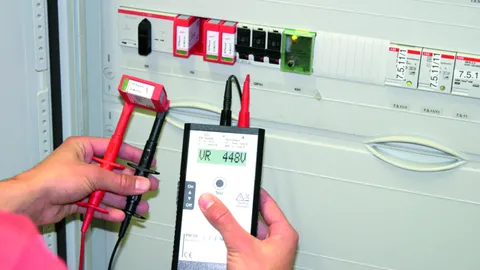

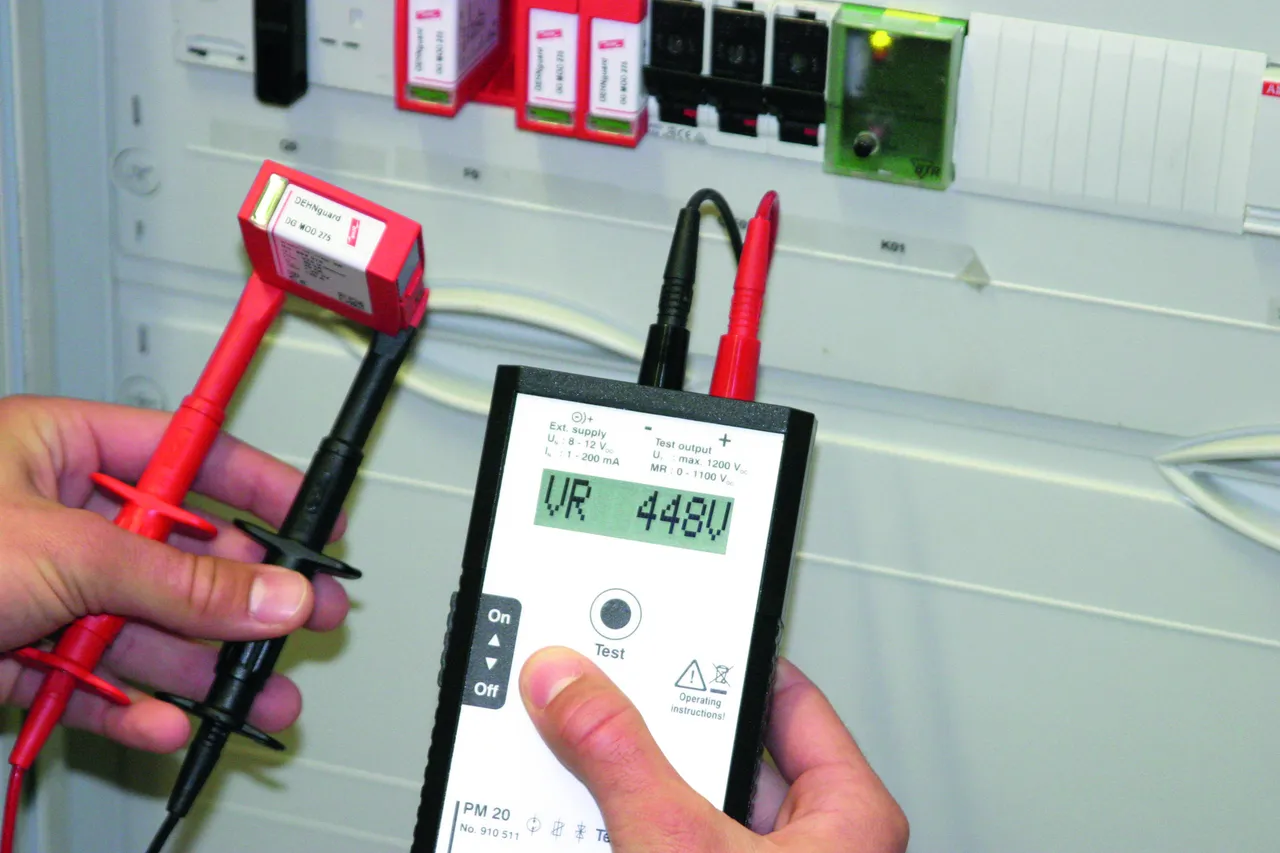

- For routine tests of surge protective devices
- Compact dimensions
- Suitable for mains and battery operation
- Low battery indicator
- Test leads included in delivery
Detalles
![](/thumbor/unsafe/fit-in/300x300/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311024/HDVORSCHAU/910511a1_Web1.jpg)
![lorem ipsum](/thumbor/unsafe/fit-in/1280x/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311024/HDVORSCHAU/910511a1_Web1.jpg)
![](/thumbor/unsafe/fit-in/300x300/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311026/HDVORSCHAU/910511_Web3.jpg)
![lorem ipsum](/thumbor/unsafe/fit-in/1280x/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311026/HDVORSCHAU/910511_Web3.jpg)
![](/thumbor/unsafe/fit-in/300x300/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311027/HDVORSCHAU/910511a3.jpg)
![lorem ipsum](/thumbor/unsafe/fit-in/1280x/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311027/HDVORSCHAU/910511a3.jpg)
![](/thumbor/unsafe/fit-in/300x300/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311025/HDVORSCHAU/910511a1_Web2.jpg)
![lorem ipsum](/thumbor/unsafe/fit-in/1280x/filters:fill(ffffff,false):quality(98)/dehn.mx/store/f/49311025/HDVORSCHAU/910511a1_Web2.jpg)
N.º art. 910511 PM 20
GTIN 4013364111424, N.º de arancel aduanero (EU): 90308900, Peso bruto: 1.47 kg, Empaquetado: 1.00 pc(s)
PredecesorDatos técnicos
Nominal voltage (UN ) | 8-12 V d.c. |
Test parameter: Test voltage | max. 1200 V d.c. |
Test parameter: Test current (reference voltage) | 1 mA d.c., constant |

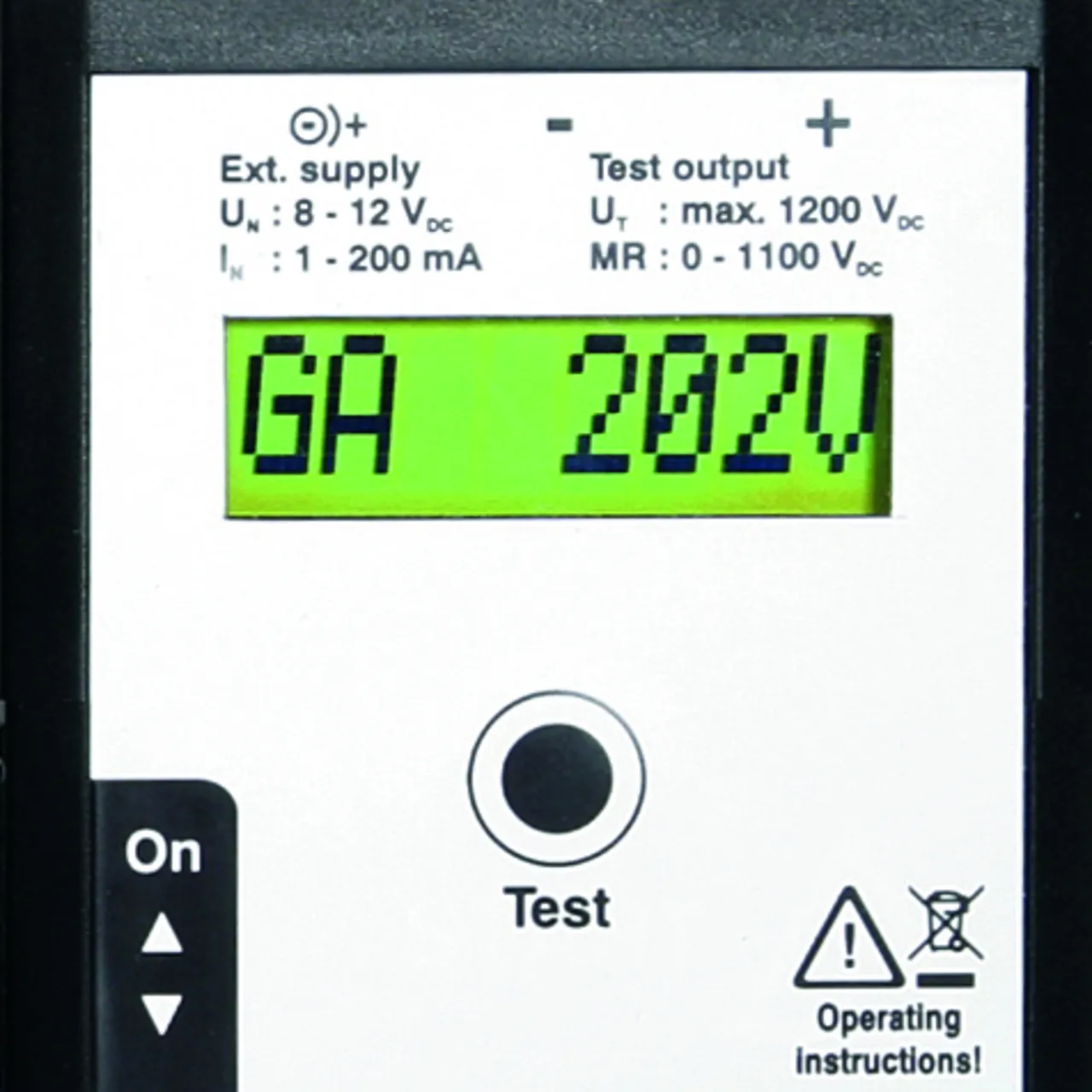

Measured value indication | alphanumeric, eight-digit LCD |

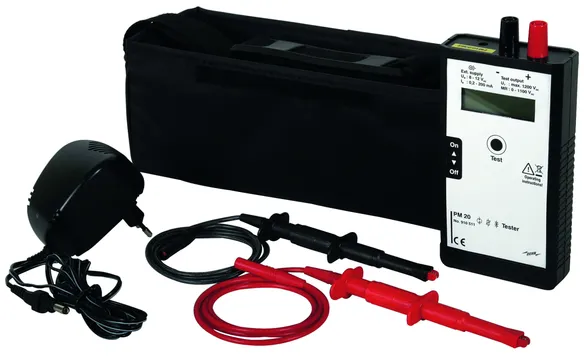

Accessories included in delivery | 2 test leads (each 1 m long), 2 safety tapping test clips, 1 plug-in power supply unit (230 V a.c.), 1 storage bag |
