Accessories for HVI light plus Conductor

A wide range of items for fixing high-voltage-resistant, insulated down conductors along the discharge and conductor route, as well as various accessories.

Due to the variable fit from Ø20 mm to Ø23 mm and 20 mm to  Ø21 mm, the conductor holders for the HVI light Conductor, HVI light plus Conductor and HVI Conductor can be used.

1 Producto

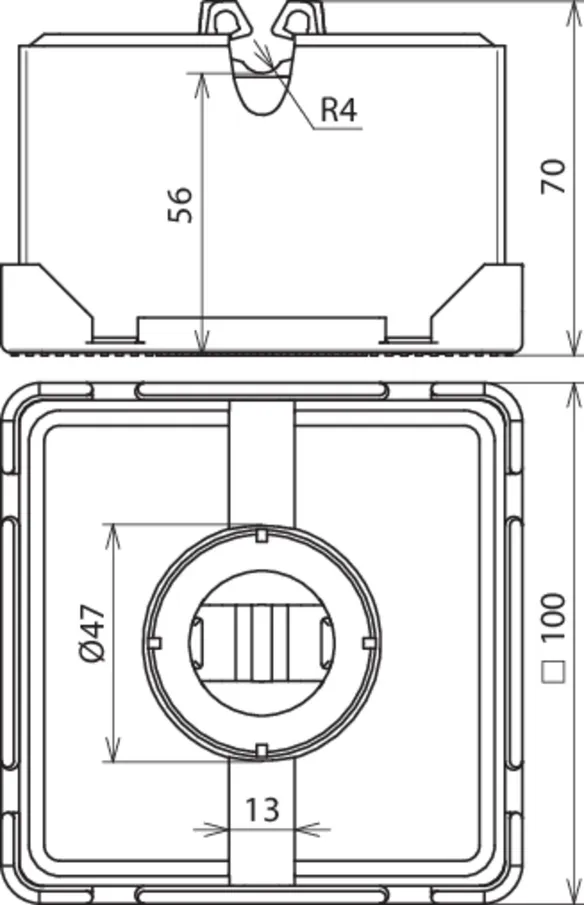

N.º art. 253015 DLH FB 8 LO 100X100X70

GTIN 4013364022201, N.º de arancel aduanero (EU): 68109100, Peso bruto: 1.05 kg, Empaquetado: 10.00 pc(s)

Figuras

Más información

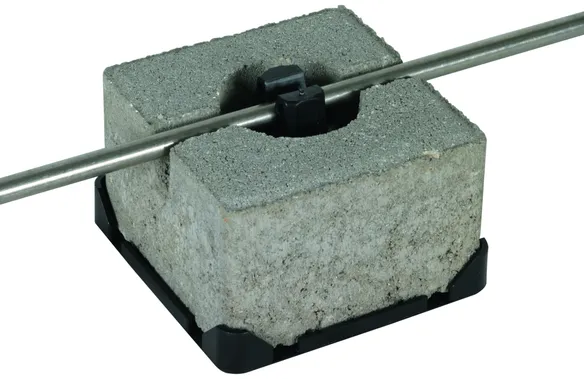

Conductor holder type FB (loose) for flat roofs
Roof conductor holder for attaching round conductors to flat roofs
Type FB with one conductor support
Made of frost-resistant concrete and weather-resistant plastic, UV-stabilised
Plastic and concrete parts have to be recycled separately

Brand: DEHN
Type: DLH FB 8 LO 100X100X70
Part No.: 253015
or equivalent.



Datos técnicos

Component protection German Patent No. 32 24 332.4
Type square, open form
Conductor routing loose
Material of conductor holder plastic
