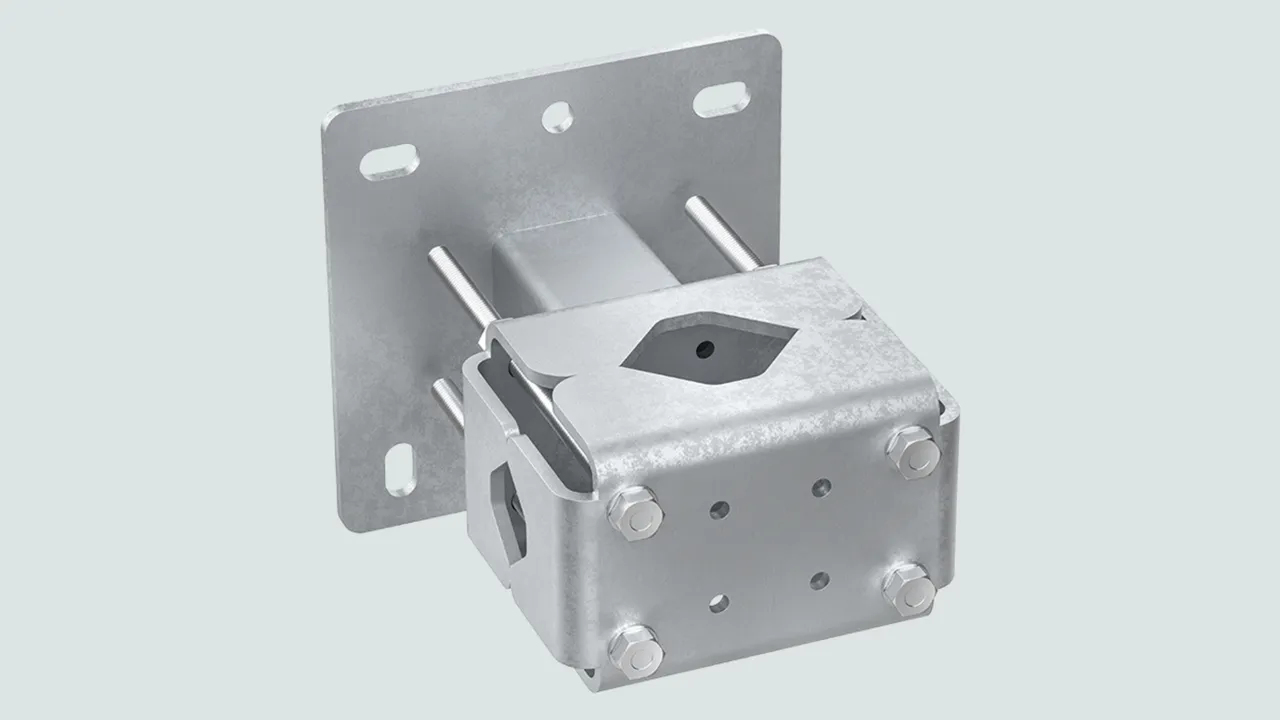

Mast holder, heavy version

For erecting air-termination systems on installations, such as biogas plantsThe heavy version of the mast holder enables the mounting of air-termination masts with a diameter of Ø55–100 mm
  • Ø40-50 mm mounted upright
  • Ø50-100 mm mounted transversally

1 Producto

N.º art. 105352 WB D55.100 SE WA150 STTZN

GTIN 4013364502727, N.º de arancel aduanero (EU): 85389099, Peso bruto: 5.36 kg, Empaquetado: 1.00 pc(s)

Figuras

Más información

Mast attachment for wall mounting, HDG steel, horizontal installation
Mast attachment for wall mounting
For fixing an
air-termination mast Ø55–100 mm
to the structure to be protected
or to a wall

Material: HDG steel
Fixing: [4x] Ø14 mm
Distance from wall: 106 mm
Clamping range (Ø mast): 55-100 mm
Material of threaded rod / nut / washer: StSt

Brand: DEHN
Type: WB D55.100 SE WA150 STTZN
Part No.: 105352
or equivalent.



Datos técnicos

Material HDG steel
Fixing [4x] Ø14 mm
Distance from wall 106 mm
Clamping range (Ø mast) 55-100 mm
Material of threaded rod / nut / washer StSt
